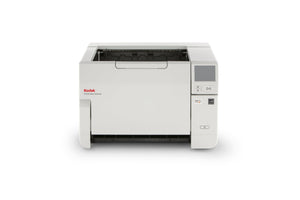

Kodak S3140 Max Scanner

  • S$14,300.00
    Unit price per



Specification

Product Highlights Compact A3 scanner with fast scan speed and a straight-through paper path to feed thick or exceptionally long documents
Throughput Speeds * 140 ppm / 280 ipm
Feeder Capacity Up to 500 sheets of 80 g/m² (20 lb.) paper
Connectivity
  • 10/100/1000 ETHERNET
  • USB 3.2 Gen 1x1 Compatible
Maximum Document Size 305 mm x  4.06 m (12 in. x 160 in.)
Minimum Document Size 63.5 mm x 71.1 mm (2.5 in. x 2.8 in.)
Paper Thickness & Weight 34–433 g/m² (9–160 lb.) paper
Maximum Optical Capture Resolution 600 dpi
Accessories & Consumables
  • Carrier Sleeves (5 PACK)
  • Document Extenders
  • Feeder Consumables Kits
  • KODAK A3 Size Flatbed Accessory
  • KODAK Enhanced Printer Accessory
  • Printer Ink Cartridge and Carrier
  • Rear Exit Tray Accessory
Acoustical Noise
  • Off or Ready mode: < 20 dB(A)
  • Scanning: <66 dB(A)
Approvals and Product Certifications
  • Argentina (S mark)
  • Australia/New Zealand (RCM)
  • Canada (cTUVus & ICES-003)
  • China (CCC)
  • European Union (CE)
  • European Union (GS Mark)
  • India (BIS)
  • Japan (VCCI)
  • Mexico (NOM)
  • Russia/Eurasian Economic Union (EAC)
  • South Korea (KC)
  • Taiwan (BSMI)
  • US (cTUVus & FCC)
Barcode Reading
  • Codabar
  • Code 128
  • Code 3 of 9
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • PDF417
  • QR
  • UPC-A
  • UPC-E
Bundled Software
  • Capture Pro Limited Edition
  • Smart Touch
Data Security This scanner processes scanned data exclusively through volatile memory ensuring image data is effectively erased upon shut down. Read more about data security.

Dimensions & Weight

Size with tray in the upright position:
Height: 295 mm / 11.6 in
Width: 457.2 mm / 18 in.
Depth: 370.8 mm / 14.6 in.

Weight: 16.5 kgs / 36.29 lbs

Electrical Requirements 100-240 V (International); 50-60 Hz
File Format Outputs
  • BMP
  • JPEG
  • Single-page TIFF
  • Microsoft Excel
  • Microsoft Word
  • Multipage TIFF
  • PDF
  • Text searchable PDF
  • PNG
  • RTF
Environmental Certification
  • 2008 EuP
  • ENERGY STAR Qualified
  • EPEAT Gold
Image Output Resolution Options
Up to 1200 dpi
Network Protocols
  • DHCP (or static IP)
  • TCP/IP
Operating System Compatibility
  • WINDOWS 11 (64 bit)
  • WINDOWS 10 (32- and 64-bit)
  • WINDOWS 8.1 (32-bit and 64-bit)
  • WINDOWS Server 2012 R2 X64 Editions
  • WINDOWS Server 2016 X64 Editions
  • WINDOWS Server 2019 X64 Editions
  • WINDOWS Server 2022 X64 Editions
  • Ubuntu 20.04 64-bit
  • Ubuntu 18.04 64-bit
  • Open SUSE Leap-15.2 & 13.1
  • SUSE Enterprise Desktop-15.2 & 12.4
  • SUSE Linux Enterprise Desktop 12 SP2 64-bit
  • Neokylin V7 (x86/x64 & MIPS only) (Available only in China)
  • UOS (x86/x64 & MIPS only) (Available in China only)
  • Kylin 10 (x86/x64 & MIPS only) (Available in China only)
Operating Temperature / Operating Humidity
  • Operating Temperature 10-35° C (50-95° F)
  • Operating Humidity 15% - 80% RH
Operator Control Panel 3.5 inch (89 mm) graphical color touchscreen LCD with operator control buttons
Optional Software
  • Capture Pro Software
  • Info Input Solution
Paper Path Options Documents can exit into the front output tray, or at the rear of the scanner if the straight-through paper path option is manually selected
Paper Handling (SurePath) Features
  • Controlled stacking
  • Enhanced jam recovery
  • Intelligent Document Protection
  • Interactive Operator Control Panel (OCP)
  • Length Multifeed Detection
  • Rear exit
  • Ultrasonic Multifeed Technology
Perfect Page Image Enhancement Software
  • Adaptive threshold processing
  • Add or remove border
  • Aggressive cropping
  • Auto white balance
  • Autocrop
  • Automatic Brightness/Contrast
  • Automatic color balance
  • Automatic color detection
  • Automatic orientation
  • Automatic photo cropping
  • Background color smoothing
  • Barcode reading
  • Black and white image segmentation
  • Brightness and contrast adjustment
  • Color-on-the-fly toggle patch
  • Content-based blank page removal
  • Continuous Scanning Mode
  • Deskew
  • Digital stamping
  • Dual stream scanning
  • Electronic color dropout
  • Enhanced color adjustment
  • Enhanced color management
  • Fixed cropping
  • Fixed thresholding
  • Halftone removal
  • Image edge fill
  • Image hole fill
  • Image merge
  • Image split
  • Interactive multifeed with image display on host
  • iThresholding
  • Lone Pixel Noise Removal
  • Majority rule noise removal
  • Multicolor dropout
  • Multi-lingual auto orientation
  • Orthogonal rotation
  • Output Compression-CCITT Group IV, JPEG, Uncompressed Output
  • Rear side printer
  • Relative cropping
  • Sharpening
  • Sleeve scanning (for scanning A3 documents or multiple small documents)
  • Snap to Size
  • Streak filtering
Power Consumption
  • Running: less than 50 watts
  • Sleep Mode: less than 4 watts
  • Standby: less than 0.3 watts
Recommended Daily Volume Up to 70,000 pages per day
Recommended PC Configuration INTEL CORE i3, running @ 3.5 GHz or higher, USB port 3.0 (Super Speed) or 2.0 (High Speed), 3.43 GB RAM or more
Scanning Technology
Dual RGB LED Illumination CIS (CMOS); Grayscale output bit depth is 256 levels (8-bit); color output bit depth is 24 bits (8 x 3); color capture bit depth is 48 bits (16 x 3)
Standard Software And Drivers
  • ISIS Drivers
  • LINUX (TWAIN and SANE) Drivers
  • TWAIN Drivers
  • WIA Drivers
  • Citrix certified
  • KOFAX certified
